SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A

858.05 EUR
709.13 EUR

Delivery time

In stock > 20 pcs on the e-shop
we ship today
delivery options
Specify product selection
Variant does not exist
pcs
Motor powerMotor locationBattery range and locationCharging speed Availability Price  Quantity (pcs)
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Bag, range up to 140 km (13Ah 624Wh) Standard 2 A In stock 2 pcs 703.88 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Bag, range up to 140 km (13Ah 624Wh) Faster 5 A In stock 2 pcs 718.34 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Smaller bag, range up to 140 km (13Ah 624Wh) Standard 2 A In stock > 20 pcs 841.22 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Smaller bag, range up to 140 km (13Ah 624Wh) Faster 5 A In stock > 20 pcs 855.66 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Frame, range up to 140 km (13Ah 624Wh) Standard 2 A In stock > 20 pcs 749.67 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Frame, range up to 140 km (13Ah 624Wh) Faster 5 A In stock > 20 pcs 764.13 EUR
SET CITY POWER - Motor power: 750W, Motor location: In the front wheel, rim size 28 ", Battery range and location: Rear carrier, range up to 140 km (13Ah 624Wh), Charging speed: Faster 5 A 750W In the front wheel, rim size 28 " Smaller frame, range up to 140 km (13Ah 624Wh) Standard 2 A In stock > 20 pcs 848.42 EUR
Next

The conversion kit with this type of drive is ideal for driving on roads, in cities and for shorter distances. Due to the higher weight and location in the front or rear wheel, we do not recommend them in the field, but they are a great helper for riding on strong ones. The 750W power will be used by heavier riders, increasing your acceleration and maximum speed for your ebike.

TIP: In the Video Tutorials tabs, you will find all the technical information about the entire set, installation videos and manuals in PDF.

EVBIKE batteries have a built-in intelligent protection module that protects them against undercharging and discharging and does not support recuperation. You can choose the type of fixed battery attached to the bike frame, on the carrier, or batteries in the bag, which have a wide range of placement options according to the requirements of the rider. Battery capacity affects the range. More about batteries ►

TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.
The LCD display is placed in the center of the handlebars and you can use it to control the entire e-bike. On the display, you can unlock the speed limit of 25 km / h (off-road) yourself without losing the warranty. With the help of the control, you can divide the power of the drive up to 5 assistance stages.

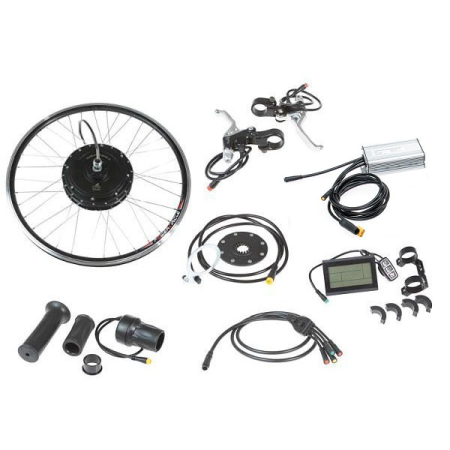

Package contents:

  • Direct drive 750W of your choice
  • Batteries of your choice
  • Charger with charging current 2A or 5A
  • Programmable control unit
  • L + R brake lever with disconnector
  • Rotary accelerator
  • Central wiring harness
  • Pedal assistant


TIP: In a specialized service, the motors can be twisted into a 20 "-29" rim. We do not make this adjustment, but we will be happy to recommend a bicycle service where the engines will be intertwined for you.

The cable length:

  • display: 300 mm
  • brakes: 400 mm
  • accelerator: 400 mm
  • power cable (from the controller): 1200 mm
  • motor cable (from controller): 1200 mm
  • motor cable (from motor): 350 mm
  • main wiring harness connection: 170 mm
  • main wiring harness: 1100 mm
  • pedal sensor cable: 950 mm


TIP: The minimum distance for the front axle is 100 mm and for the rear axle 135 mm. When installing the kit in the front wheel, we recommend using a anti-slip ratchet to secure the engine against twisting in the fork.
The set meets the maximum speed limit of up to 25 km/h according to the valid legislation. It therefore meets the standards for road traffic. The maximum speed limit of 25 km/h can be switched off and set up to 60 km/h (off-road).

Parameters
Motor power
750W/48V
Motor weight
6,6 kg
Torque sensor
No
Motor programming
No
Battery weight
3,2 kg - 4,3 kg
Optional display
No
Nominal voltage
3.7 V
Cell composition
Lithium (Li-ion)
Display diagonal
3,4"
IP65 cabling protection
Yes
Full color display
No
Cruise control
Yes
Load capacity
100 kg
Number of permanent magnets
46
Size of permanent magnets
27 x 13,7 x 3 mm
