Front wheel motor power 500W, rack battery capacity 15.6 Ah

-6%

The complete EVBIKE set with a motor entangled in the front 26 "or 28" rim with a controller, cabling, 15,6Ah 36V rack battery and a 5A fastcharger. Motor power: 500 W with 36V battery. BLDC (brushless DC). More

770.46 EUR
636.74 EUR

Specify product selection
Variant does not exist
pcs

The complete EVBIKE set with a motor entangled in the front 26 "or 28" rim with a controller, cabling, 15,6Ah 36V rack battery and a 5A fastcharger. Motor power: 500 W with 36V battery. BLDC (brushless DC). More

Rim size Availability Price  Quantity (pcs)
Front wheel motor power 500W, rack battery capacity 15.6 Ah 28" Not on stock
Watch availability
770.46 EUR
Front wheel motor power 500W, rack battery capacity 15.6 Ah 26" In stock 12 pcs 770.46 EUR

The conversion kit is complete. You do not need any additional accessories.

The new control unit can read data about speed and distance traveled directly from the engine and thanks to this the set no longer contains a speed sensor. Making installation is easier and clearer. After connecting a 36V battery the nominal power of the motor is 500 W. Thanks to the high torque of a powerful motor it is possible to ride a bike in accelerator mode. The motor is maintenance-free and, thanks to its robust construction, can be significantly overloaded.

TIP: In the tabs Parameters, Downloads and Video tutorials you will find all technical information about the whole set, videos for its installation and manuals in PDF.

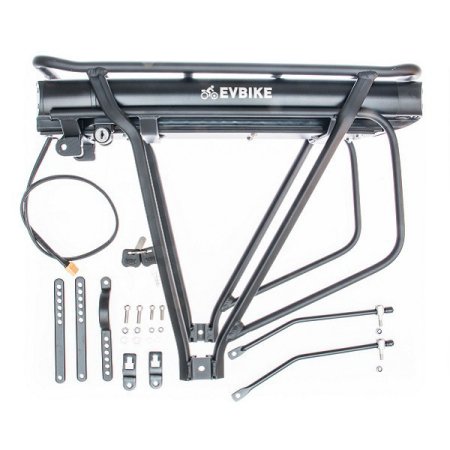

The EVBIKE 15.6 Ah (562 Wh) battery is designed to be mounted above the rear wheel, the package includes an adjustable carrier. The battery is equipped with a security lock against theft, after unlocking it can be easily removed from the holder, eg during charging or transport. It has a built-in safety red tail light, which lights up automatically when the battery is switched on. It is especially suitable for bicycles with a small frame or for city bikes. More about battery ►

TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.

Advantages of the EVBIKE set:

  • multifunctional backlit LCD display which in addition to driving information, shows the current energy consumption (W), battery voltage (V) and more…
  • possibility to activate or deactivate cruise control
  • The L + P e-brake lever with switch allows you to take the engine out of operation immediately
  • variability of conversion (bicycles, scooters, tricycles)
  • maintenance-free, robust and durable motor construction
  • possibility of weaving into the rim 20 "-28" (in a specialized service)
  • a brake disc can be mounted on the motor

The cable length:

  • display: 300 mm
  • brakes: 400 mm
  • accelerator: 400 mm
  • power cable (from the controller): 1200 mm
  • motor cable (from controller): 1200 mm
  • motor cable (from motor): 350 mm
  • main wiring harness connection: 170 mm
  • main wiring harness: 1100 mm
  • pedal sensor cable: 950 mm
TIP: The minimum distance for the front axle is 100 mm and for the rear axle 135 mm. When installing the kit in the front wheel, we recommend using a non-slip ratchet to secure the engine against twisting in the fork.
TIP: If you are wondering if your bike can be electrified, check out the gallery of already rebuilt bikes and get an inspiration ►

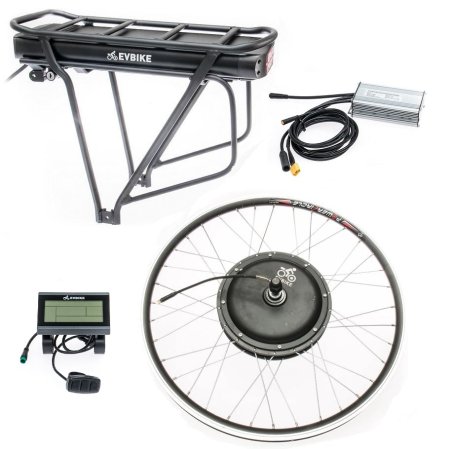

Package contents:

  • Motor with 26 "or 28" rim string
  • Battery 36V 15.6 Ah including carrier
  • 2x key
  • Charger 5A
  • LCD display with control
  • Programmable control unit
  • L + R brake lever with disconnector
  • Rotary accelerator
  • Central wiring harness
  • Pedal assistant
Parameters
Battery capacity
15,6 Ah (562 Wh)
Battery location
On the rear carrier
Motor power
500W/36V
Motor weight
6,6 kg
Motor programming
No
Weight incl. carrier
6,4 kg
Rim size
26"
Battery size
460 x 155 x 55 mm
Optional display
No
Number of cycles
800 (capacity reduced by max. 30 %)
Nominal voltage
3.7 V
Cell composition
Lithium (Li-ion)
Range
80 - 160 km
Charging current
5 A, 2 A
USB output
Yes
Walking assistance
Yes (6 km/h)
Bluetooth
No
Full color display
No
Assistance
0-5
Location
Front
Cruise control
Yes
Load capacity
100 kg
Number of permanent magnets
46
Size of permanent magnets
27 x 13,7 x 3 mm
