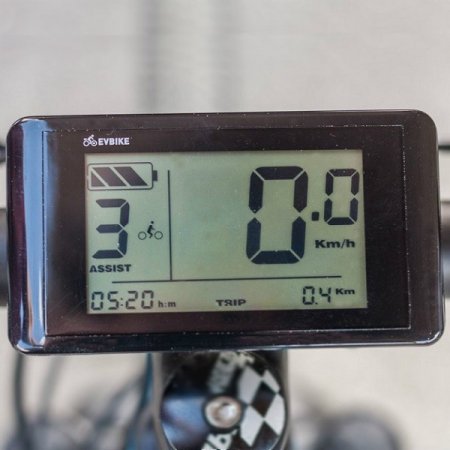

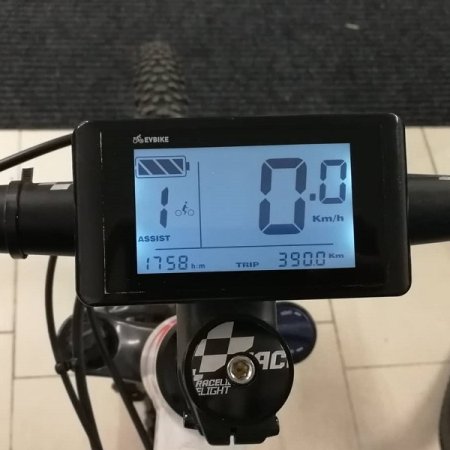

    LCD display C961 for mid-drive, UART

    LCD display C961 for mid-drive, UART

    Sale -15%

    Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The diagonal of the display is 3.2". More

    Original price 64.10 EUR. Save 15% (9.62 EUR)

    54.48 EUR
    45.40 EUR

    Delivery time

    In stock > 20 pcs on the e-shop
    we ship today
    delivery options
    pcs

    Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The diagonal of the display is 3.2". More

    Product code: EVLCD-CMS-C961
    Add to compare list Add to favourites Shipping and Payment

    Videonávod

    Choose the display that suits you best

    The color LCD display for 250 W, 750 W and 1000 W mid-drive motor is located in the center of the handlebars. The display includes control buttons that control the entire motor and USB output (5V / 500 mA). The USB output is used to connect an external device that can be charged while the system is on. Thanks to the high contrast of the display, it is possible to read information from the display without difficulty even in direct sunlight.

    TIP: In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

    With the control buttons you set and control the whole system. Switch the system on and off, change the degree of assistance, the distance traveled, the total distance, etc. The control buttons allow a wide range of settings without the need to program the control unit. The adjustable display holder is very practical, with it you can adjust the display exactly according to your ideas.

    TIP: You can unlock the speed limit of 25 km/h (off-road) yourself on the display without losing the warranty.

    Control buttons allow:

    • On/Off system
    • Assist level 0-3, 0-5, 0-9
    • Wallking assist (6 km/h)
    • Current time
    • Battery status
    • Change the display between:
      • current speed
      • average speed

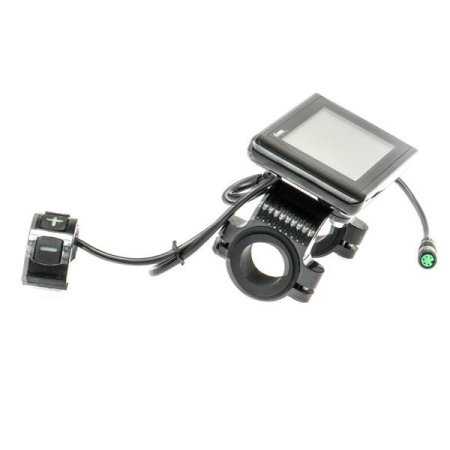

    Package contents:

    • Display with control buttons
    • Display holder with folding jaw for handlebars
    • Pads for lining the holder
    • Installation material
    Parameters
    Dimensions
    60 x 100 x 15 mm
    Display diagonal
    3,2"
    USB output
    No
    Walking assistance
    Yes (6 km/h)
    Bluetooth
    No
    Assistance
    0-9, 0-5, 0-3
    Battery indicator
    Yes
    Time
    Yes
    Automatic display backlight
    No
    (ODO/TOTAL)
    Yes
    (TRIP)
    Ano
    Current speed
    Yes
    Average speed
    No
    Maximal speed
    No
    Power display in W
    No
    Display of ambient temperature
    No
    Download
    Manual CZ (pdf, 800.2 kB)
    Manual EN (pdf, 766.2 kB)
