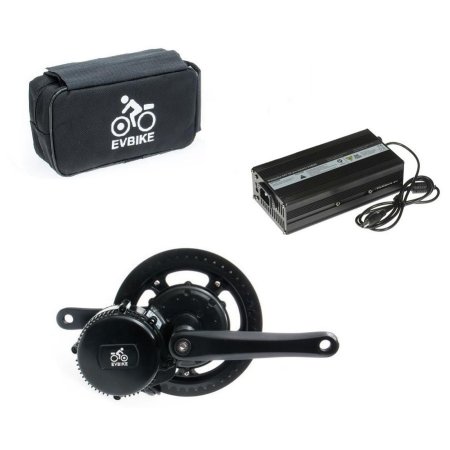

Motor power 250W, bag battery capacity 15,6Ah with a range of up to 120 km

Display not included

Product code

EVB-CMS-16AH

Price with VAT

777.67 EUR

Price without VAT

642.70 EUR

Availability

Not on stock Not possible to order, wait for stocking. If you have any questions, please contact us.

Add to favourite products Add to compare list

	Product	Price incl. VAT	Add to Cart
	LCD display C961 for mid-drive code: EVLCD-CMS-C961 -3%	54.49 EUR 56.24 EUR
	Full color LCD display C18 for mid-drive code: EVLCD-CMS-C18 -12%	105.74 EUR 120.19 EUR
	Full color LCD display 500c for mid-drive code: EVLCD-CMS-500C	68.29 EUR

It is necessary to buy a display to control the set ►

The motor is mounted in the frame instead of the pedal center. Thanks to the fact that the engine is installed in the middle of the wheel, the optimum center of gravity is achieved and driving characteristics are not limited. It is resistant to the ingress of dust and water jets (IP65). The motor is designed for center axles measuring 68 - 72 mm. The advantage of central drives is that they have a range of up to 35% longer than the hub-drive motor. They are so versatile that they can be installed on 99% of series-produced bicycles. More about the motor ►

TIP: In the Parameters, Downloads and Video tutorials tabs you will find all technical information about the whole set, videos for its installation and manuals in PDF.

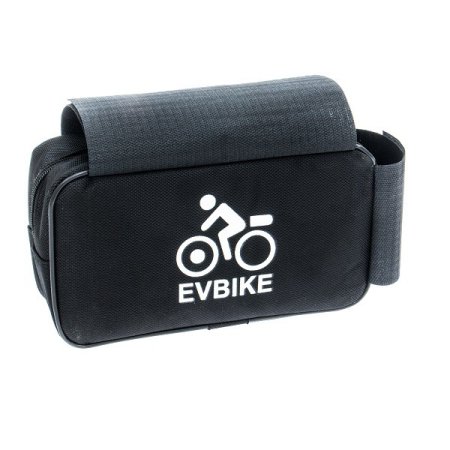

The EVBIKE 15.6 Ah (562 Wh) battery is supplied with a cloth bag, which can be placed in a frame, backpack or according to your needs and possible use. The photo of the bag is illustrative, the packaging may vary slightly. The battery includes an intelligent protective BMS module for balancing cells, their protection against undercharging and discharge. The battery has no memory effect and does not support recuperation. The battery itself is in a plastic box with a charging and discharging connector. More about the battery ►

TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.

TIP: Calculate how far you can ride with this set. Try our range calculator ►

Package contents:

Motor 36 V, 250 W
Bag battery 36 V, 15,6 Ah
Charger 5 A
Main cable bundle with 4 outputs
Speed sensor with magnet
Chainring 46T with a protective cover
L + R pedal crank
Mounting material (screws and nuts)

TIP: Before installing the motor, we recommend purchasing special wrenches to tighten the lock and counter nuts and thread glue.

TIP: If you are wondering if your bike can be electrified, check out the gallery of already rebuilt bikes and get an inspiration ►

Parameters

Battery capacity

15,6 Ah (562 Wh)

Battery location

In the bag (variable location)

Motor power

250 W

Motor weight

4,7 kg

Torque

50 Nm, peak torque 80 Nm

Motor noise

<55 dB (silent mode)

Torque sensor

To the center axis

68-72 mm

Motor programming

Yes

Battery weight

3,7 kg

Battery size

240 x 130 x 85 mm

Optional display

Yes

Number of cycles

800 (capacity reduced by max. 30 %)

Nominal voltage

3.7 V

Cell composition

Lithium (Li-ion)

Range

80 - 160 km

Charging current

5 A, 2 A

USB output

Walking assistance

Yes (6 km/h)

IP65 protection

Yes

Bluetooth

Memory effect

Manuál pro středový pohon.pdf (pdf, 1.1 MB) Manuál pro brašnové baterie.pdf (pdf, 454.4 kB)

Bag battery connection

You can install the bag battery on the bike in a few seconds.
