Motor power 250W, smaller bag battery capacity 13Ah with a range of up to 100 km

More photos (7)

Price incl. VAT

957.86 EUR

Price excl. VAT

791.62 EUR

Product code: EVB-CMS-13AHT

Add to compare list Add to favourites Shipping and Payment

Additional services

Product	Availability	Price
Full color LCD display 500c for mid-drive Code: EVLCD-CMS-500C Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	91.63 EUR
LCD display C965 for mid-drive Code: EVLCD-CMS-C965 Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	76.24 EUR
LCD display C961 for mid-drive Code: EVLCD-CMS-C961 Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	71.55 EUR
Full color LCD display C18 for mid-drive Code: EVLCD-CMS-C18 Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	132.34 EUR

Description

It is necessary to buy a display to control the set ►

The motor is mounted in the frame instead of the pedal center. Thanks to the fact that the engine is installed in the middle of the wheel, the optimum center of gravity is achieved and driving characteristics are not limited. It is resistant to the ingress of dust and water jets (IP65). The motor is designed for center axles measuring 68 - 72 mm. The advantage of central drives is that they have a range of up to 35% longer than the hub-drive motor. They are so versatile that they can be installed on 99% of series-produced bicycles. More about the motor ►

TIP: In the Parameters, Downloads and Video tutorials tabs you will find all technical information about the whole set, videos for its installation and manuals in PDF..

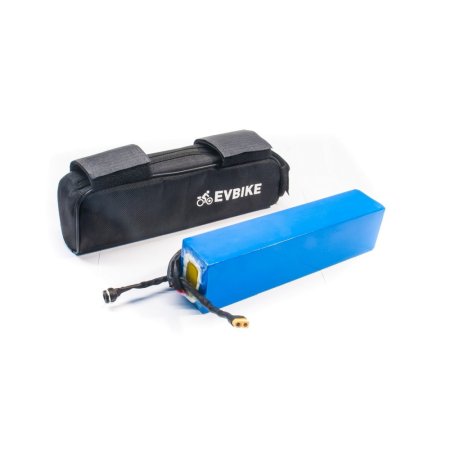

The EVBIKE 13 Ah (468 Wh) battery comes with a fabric bag that can be placed in a frame, backpack, or according to your needs and possibilities of use. The battery includes an intelligent protective BMS module for balancing cells, their protection against undercharging and discharge. The battery has no memory effect and does not support recuperation. The battery itself is in a plastic box with a charging and discharging connector. More about the battery ►

TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.

TIP: Calculate how far you can ride with this set. Try our range calculator ►

Package contents:

Motor 36 V, 250 W
Bag battery 36 V, 13 Ah
Charger 5 A
Main wiring harness with 4 outputs
Speed sensor with magnet
Chainring 46T with protective cover
L + R pedal crank
Mounting material (screws and nuts)

TIP: Before installing the motor, we recommend purchasing special wrenches to tighten the lock and counter nuts and thread glue.

TIP: If you are wondering if your bike can be electrified, check out the gallery of already rebuilt bikes and get an inspiration ►

Parameters

Battery capacity

13 Ah (468 Wh)

Battery location

In the bag (variable location)

Motor power

250 W

Motor weight

4,7 kg

Torque

50 Nm, peak torque 80 Nm

Motor noise

<55 dB (silent mode)

Torque sensor

To the center axis

68-72 mm

Motor programming

Yes

Battery weight

2,38 kg

Battery size

300 x 80 x 75 mm

Optional display

Yes

Number of cycles

800 (capacity reduced by max. 30 %)

Cells

Nominal voltage

3.7 V

Cell composition

Lithium (Li-ion)

Range

80 - 130 km

Charging current

5 A, 2 A

USB output

Walking assistance

Yes (6 km/h)

IP65 cabling protection

Yes

Bluetooth

Memory effect

Download

Manual central drive EN.pdf (pdf, 920.5 kB)

Manuál pro středový pohon.pdf (pdf, 1.1 MB)

Baterie v brašně CZ, EN.pdf (pdf, 565.5 kB)
