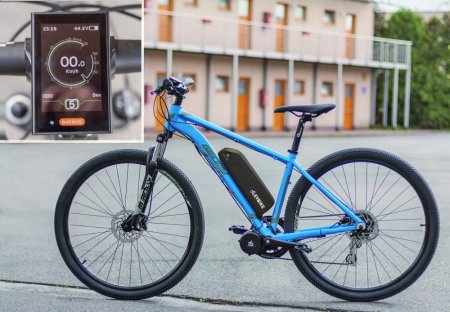

    5. SET POWER FOR DEMANDING AND HEAVIER RIDERS

    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB

    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB

    Make your set

    1508.75 EUR
    1246.90 EUR

    Specify product selection
    Variant does not exist
    In stock > 20 pcs - The frame battery has an ideal center of gravity in the middle of the bike.
    pcs

    Product code: CMS-750-94
    Add to compare list Add to favourites Shipping and Payment

    Variants40

    Motor powerBattery range and locationCharging speedDisplay type Availability Price  Quantity (pcs)
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Standard 2 A LCD C961 In stock > 20 pcs 1169.53 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Standard 2 A LCD C965 In stock > 20 pcs 1174.15 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Standard 2 A Full color LCD C18 with USB In stock > 20 pcs 1229.42 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Standard 2 A Full color LCD 500c In stock > 20 pcs 1189.33 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Faster 5 A LCD C961 In stock > 20 pcs 1184.84 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Faster 5 A LCD C965 In stock > 20 pcs 1189.47 EUR
    SET POWER FOR DEMANDING AND HEAVIER RIDERS - Motor power: 750W + gearsensor, Battery range and location: Frame, range up to 180 km (16Ah 768Wh), Charging speed: Standard 2 A, Display type: Full color LCD C18 with USB 750W + gearsensor Bag, range up to 140 km (13Ah 624Wh) Faster 5 A Full color LCD C18 with USB In stock > 20 pcs 1244.74 EUR
    Next

    An ebike with this type of motor has an optimal center of gravity in the middle of the bike and riding characteristics are not limited in any way. By changing gears, it is also possible to achieve higher speeds. Power 750W is suitable for heavier riders or more demanding cyclists who want higher power in more demanding terrain. More about the motor ►

    Why the kit includes GEARSENSOR (shift sensor)

    The sensor shuts down the drive each time you shift and thus provides a significantly longer life for the entire shift system. It is a unique patented system, developed and manufactured in the Czech Republic. It is based on an intelligent shift sensor mounted on the shift cable that reduces or disengages the drive when the rider activates the shift.

    TIP: The kit includes a shift sensor that plugs into the brake connector, if you want to connect the left and right brake levers at the same time, you will need a brake connector hub.
    TIP: In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

    EVBIKE batteries have a built-in intelligent protection module that protects them from undercharging and discharging. Batteris do not support recuperation. You can choose the type of fixed battery on the bike frame, on the carrier, or batteries in the bag, which have a wide range of placement options according to the requirements of the rider. Battery capacity affects the range. You can drive up to 160 km on a single charge in economy mode. More about batteries ►

    TIP:Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.

    LCD displays are placed in the center of the handlebars or on the left side and with their help you control the entire e-bike. You can unlock the speed limit of 25 km / h (off-road) on the displays by yourself without losing the warranty. More about displays ►

    TIP:  If you are wondering if your bike can also be electrified, take a look at the gallery of already rebuilt bikes and get an inspiration ►

    Package contents:

    • Motor 48 V, 750 W
    • Batteries of your choice
    • Charger with charging current 2A or 5A
    • Display of your choice
    • Gearsensor
    • Main cable bundle with 4 outputs
    • Speed sensor with a magnet
    • Chainring 46T with a protective cover
    • L+R pedal crank
    • Assembly material (screws and nuts)
    Parameters
    Complete weight
    8 kg - 12 kg (according to the battery)
    Motor power
    750 W
    Motor weight
    4,7 kg
    Torque
    70 Nm, peak torque 100 Nm
    Motor noise
    <55 dB (silent mode)
    Torque sensor
    Ne
    To the center axis
    68-72 mm
    Motor programming
    Yes
    Battery weight
    3,6 kg - 4,3 kg
    Nominal voltage
    3.7 V
    Cell composition
    Lithium (Li-ion)
    Walking assistance
    Yes (6 km/h)
    IP65 cabling protection
    Yes
    Download
    Manuál pro rámové baterie.pdf (pdf, 853.9 kB)
    Manuál pro nosičové baterie.pdf (pdf, 644.8 kB)
    Manuál pro brašnové baterie.pdf (pdf, 454.4 kB)
    Manuál pro LCD dispej C10.pdf (pdf, 669.5 kB)
    Manuál pro LCD dispelj C965.pdf (pdf, 725.4 kB)
    Manuál pro LCD displej C18.pdf (pdf, 386.6 kB)
    Manuál pro rámové baterie.pdf (pdf, 853.9 kB)
    Manuál pro středový pohon.pdf (pdf, 1.1 MB)
    Unboxing and installation of a carrier battery

    Unboxing and installation of a carrier battery

    It only takes a few minutes to install the carrier battery. The package includes all mounting material. The carrier is height-adjustable and is therefore suitable for various bike sizes.
