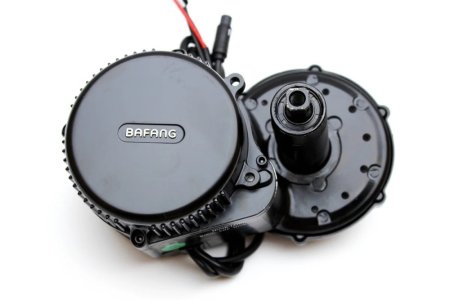

    Mid-Drive motor 750W, 48V, CAN

    Mid-Drive motor 750W, 48V, CAN

    Sale -15% New
    Mid-Drive motor 750W, 48V, CAN

    Mid-drive motor BBS-02 for driving the central axis with a complete electric equipment and other bonus accessories. Add a battery and a display of your choice and you may hit the road. The motor is designed for center axles measuring 68-72 mm. More

    Original price 570.98 EUR. Save 15% (85.65 EUR)

    485.33 EUR
    404.44 EUR

    Delivery time

    In stock > 20 pcs on the e-shop
    we ship today
    delivery options
    pcs

    Mid-drive motor BBS-02 for driving the central axis with a complete electric equipment and other bonus accessories. Add a battery and a display of your choice and you may hit the road. The motor is designed for center axles measuring 68-72 mm. More

    Product code: EVBIKE-SET-CMS-48-CAN
    Add to compare list Add to favourites Shipping and Payment

    Instalace středového pohonu a převodníku

    Combine sports and entertainment with mid-drive motor

    The motor is mounted in the frame instead of the pedal. It has an optimal center of gravity in the middle of bike. It is dust-proof and protected against water (IPX5). The motor is designed for center axes of 68-72 mm. The advantage of central drives is that they have up to 35% longer range than hub-drives motors.. They are so universal that they can be installed on 99% of series bikes. Individual consultation is recommended for carbon frames and press fit.

    TIP:In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

    For full functionality, you can choose one of the displays with CAN protocol that suit you best and a 48 V battery according to your preference. We recommend using Gearsensor that can be easily installed to the derailleur string track and connected instead of a brake lever or direct motor output. The gearsensor monitors the move of the string when changing gears and momentarily disconnects the motor in order to achieve comfort and smooth gear change.

    The mid-drives are manufactured for us by the company Bafang, with which we have been cooperating since 2013. During that time, we have jointly fine-tuned the software and settings of the EVBIKE motor so that their programming suits the widest possible range of customers.

    Package contents:

    • Motor 48 V, 750W, CAN
    • Main cable bundle with 4 outputs
    • Speed sensor with a magnet
    • Chainring 44T with a protective cover
    • L+R pedal crank
    • Assembly material (screws, nuts and cable ties)
    • Nut and cover tightening wrench
    • Crank puller
    • Bottom bracket tool
    • Front light
    TIP: Every 1000 km, or once a season, we recommend to clean and lubricat the main gear. If you drive in more demanding terrain (dust, mud, etc.), service must be done at more frequent intervals.
    Parameters
    Motor power
    750 W
    Torque
    70 Nm, peak torque 100 Nm
    Motor noise
    <55 dB (silent mode)
    To the center axis
    68-72 mm
    Motor programming
    Yes
    Weight
    5,1 kg
    Optional display
    Yes
    IP65 cabling protection
    Yes
    IP CODE
    IPX5
    Download
    Manual for motor CZ + EN (pdf, 1.7 MB)
