    Motor power 1000W, capacity of a bag battery 16Ah range of up to 120 km

    Motor power 1000W, capacity of a bag battery 16Ah range of up to 120 km

    Sale -15%

    Original price 1192.01 EUR. Save 15% (178.80 EUR)

    1013.21 EUR
    844.34 EUR

    Delivery time

    In stock 19 pcs on the e-shop
    shipping on Monday
    delivery options
    pcs
    Product code: CMS68-C10-G-17A-S
    Add to compare list Add to favourites Shipping and Payment

    Additional services

    Product Availability Price Quantity (pcs)
    LCD display C961 for mid-drive, UART LCD display C961 for mid-drive, UART Code: EVLCD-CMS-C961 Sale -15% Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 54.35 EUR  63.94 EUR
    LCD display C965 for mid-drive, UART LCD display C965 for mid-drive, UART Code: EVLCD-CMS-C965 Sale -15% Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 58.56 EUR  68.89 EUR
    Full color IPS display 600C for mid-drive, UART Full color IPS display 600C for mid-drive, UART Code: EVLCD-CMS-600C Sale -15% Color IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 66.98 EUR  78.82 EUR
    Full color IPS display 860CM for mid-drive, UART Full color IPS display 860CM for mid-drive, UART Code: EVLCD-CMS-860CM Sale -15% Color IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock 19 pcs 92.27 EUR  108.55 EUR
    Full color touch IPS display TOUCH for mid-drive, UART Full color touch IPS display TOUCH for mid-drive, UART Code: EVLCD-CMS-TOUCH Sale -15% Color touch IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system.… In stock 1 pc 166 EUR  195.29 EUR
    Full color LCD display C18 for mid-drive, UART Full color LCD display C18 for mid-drive, UART Code: EVLCD-CMS-C18 Sale -15% Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 102.80 EUR  120.94 EUR

    It is necessary to buy a display to control the set ►

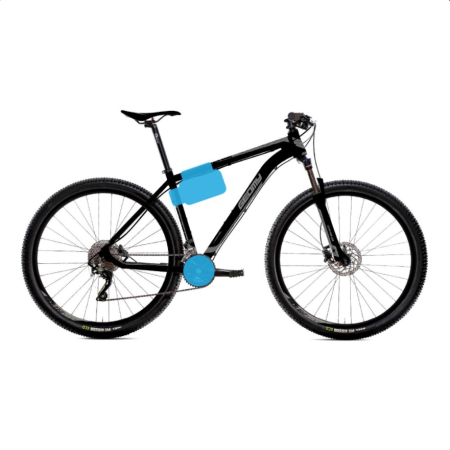

    The motor is mounted in the frame instead of the pedal. It has an optimal center of gravity in the middle of bike. It is dust-proof and protected against water (IP65). The motor is designed for center axes of 68-72 mm. The advantage of central drives is that they have up to 35% longer range than hub-drives motors. They are so universal that they can be installed on 99% of series bikes. More about the motor ►

    TIP: In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

    EVBIKE battery with a capacity of 16 Ah (768 Wh) is supplied with a fabric bag, which can be placed in a frame, backpack, or according to your needs and possible use. The battery includes an intelligent protective BMS module for balancing cells, their protection against undercharging and discharge. The battery has no memory effect and does not support recuperation. More about the battery►

    TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.
    TIP: Calculate how far you can ride with this battery. Try our range calculator ►

    Package contents:

    • Motor 48 V, 1000 W
    • Smaller bag battery 48 V, 16 Ah
    • 2x keys
    • Charger 5 A
    • Main cable bundle with 4 outputs
    • Speed sensor with a magnet
    • Chainring 44T
    • L+R pedal crank
    • Assembly material (screws and nuts)
    TIP: If you are wondering if your bike can also be electrified, take a look at the gallery of already rebuilt bikes and get an inspiration ►
    Parameters
    Battery capacity
    16 Ah (768 Wh)
    Battery location
    In the bag (variable location)
    Motor power
    1000 W
    Motor weight
    6,6 kg
    Torque
    130 Nm, peak torque 160 Nm
    Motor noise
    <55 dB (silent mode)
    To the center axis
    68-72 mm
    Motor programming
    Yes
    Battery weight
    3,6 kg
    Battery size
    232 x 92 x 70 mm, 232 x 110 x70 mm
    Number of cycles
    800 (capacity reduced by max. 30 %)
    Nominal voltage
    3.7 V
    Cell composition
    Lithium (Li-ion)
    Range
    80 - 160 km
    Walking assistance
    Yes (6 km/h)
    IP65 cabling protection
    Yes
    Display
    C10 - USB
    Download
    Manual CZ + EN (pdf, 574.8 kB)
    Manual CZ + EN (pdf, 1.7 MB)
