    Motor power 750W, capacity of a frame battery 13Ah range of up to 100 km

    Motor power 750W, capacity of a frame battery 13Ah range of up to 100 km

    -10% Display not included

    Standard price 1087.37 EUR. Save 10% (107.80 EUR)

    979.57 EUR
    809.56 EUR

    Delivery time

    In stock > 20 pcs on the e-shop
    we ship today
    delivery options
    pcs
    Product code: EVB-CMS48-GS-13A-S
    Add to compare list Add to favourites Shipping and Payment

    Additional services

    Product Availability Price Quantity (pcs)
    LCD display C961 for mid-drive LCD display C961 for mid-drive Code: EVLCD-CMS-C961 -7% Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 61.79 EUR  66.54 EUR
    LCD display C965 for mid-drive LCD display C965 for mid-drive Code: EVLCD-CMS-C965 -6% Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 66.59 EUR  70.89 EUR
    Full color LCD display C18 for mid-drive Full color LCD display C18 for mid-drive Code: EVLCD-CMS-C18 -5% Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 116.89 EUR  123.06 EUR
    Full color IPS display 600C for mid-drive Full color IPS display 600C for mid-drive Code: EVLCD-CMS-600C -16% Color IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 76.17 EUR  90.53 EUR
    Full color IPS display 860CM for mid-drive Full color IPS display 860CM for mid-drive Code: EVLCD-CMS-860CM -8% Color IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The… In stock > 20 pcs 104.91 EUR  114.49 EUR
    Full color touch IPS display TOUCH for mid-drive Full color touch IPS display TOUCH for mid-drive Code: EVLCD-CMS-TOUCH Color touch IPS display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system.… In stock 11 pcs 188.74 EUR

    It is necessary to buy a display to control the set ►

    The motor is mounted in the frame instead of the pedal. It has an optimal center of gravity in the middle of bike. It is dust-proof and protected against water (IP65). The motor is designed for center axes of 68-72 mm. The advantage of central drives is that they have up to 35% longer range than hub-drives motors. They are so universal that they can be installed on 99% of series bikes. More about the motor ►

    TIP: In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

    EVBIKE battery with a capacity of 13 Ah (624 Wh) is very easy to install on the bike frame instead of the bottle holder. The fact that the battery is at the center of bike the optimal center of gravity is achieved. The battery is equipped with anti-theft lock. After unlocking, the battery can be easily removed from the holder, for example during charging or transport. More about the battery►

    TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.
    TIP: Calculate how far you can ride with this battery. Try our range calculator ►

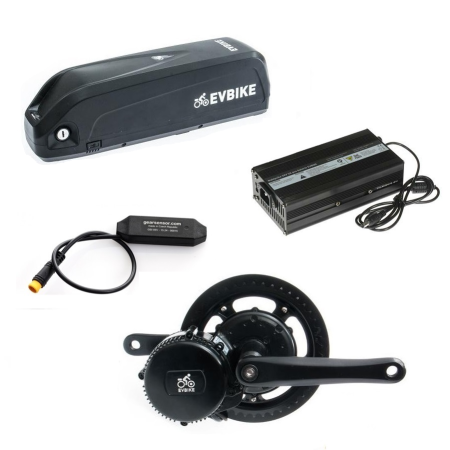

    Package contents:

    • Motor 48 V, 750 W
    • Frame battery 48 V, 13 Ah
    • 2x keys
    • Charger 5 A
    • Main cable bundle with 4 outputs
    • Speed sensor with a magnet
    • Chainring 46T with a protective cover
    • L+R pedal crank
    • Assembly material (screws and nuts)
    • Gearsensor
    TIP: If you are wondering if your bike can also be electrified, take a look at the gallery of already rebuilt bikes and get an inspiration ►
    Parameters
    Battery capacity
    13 Ah (624 Wh)
    Battery location
    Down frame tube
    Motor power
    750 W
    Motor weight
    4,7 kg
    Torque
    70 Nm, peak torque 100 Nm
    Motor noise
    <55 dB (silent mode)
    Torque sensor
    Ne
    To the center axis
    68-72 mm
    Motor programming
    Yes
    Battery weight
    4,1 kg
    Battery size
    367 x 115 x 90 mm
    Optional display
    Yes
    Number of cycles
    800 (capacity reduced by max. 30 %)
    Nominal voltage
    3.7 V
    Cell composition
    Lithium (Li-ion)
    Range
    80 - 140 km
    Charging current
    5 A, 2 A
    USB output
    Yes
    Walking assistance
    Yes (6 km/h)
    IP65 cabling protection
    Yes
    Bluetooth
    No
    Memory effect
    No
    Download
    Manual for motor CZ + EN (pdf, 1.7 MB)
