Motor power 750W, capacity of a smaller bag battery 13Ah range of up to 100 km

Display not included

More photos (8)

Price incl. VAT

1251 EUR

Price excl. VAT

1033.88 EUR

Product code: EVB-CMS48-GS-14AHT

Add to compare list Add to favourites Shipping and Payment

Additional services

Product	Availability	Price
LCD display C961 for mid-drive Code: EVLCD-CMS-C961 Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	71.55 EUR
LCD display C965 for mid-drive Code: EVLCD-CMS-C965 Universal display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	76.24 EUR
Full color LCD display C18 for mid-drive Code: EVLCD-CMS-C18 Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	132.34 EUR
Full color LCD display 500c for mid-drive Code: EVLCD-CMS-500C Color LCD display for EVBIKE mid-drives. The display shows the most important riding information and allows you to set up the system. The…	In stock > 20 pcs	91.63 EUR

Description
Video Ducts

It is necessary to buy a display to control the set ►

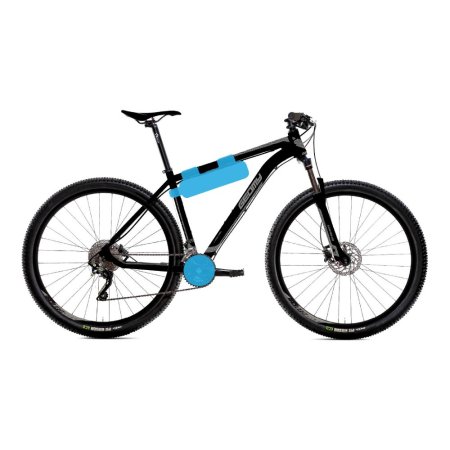

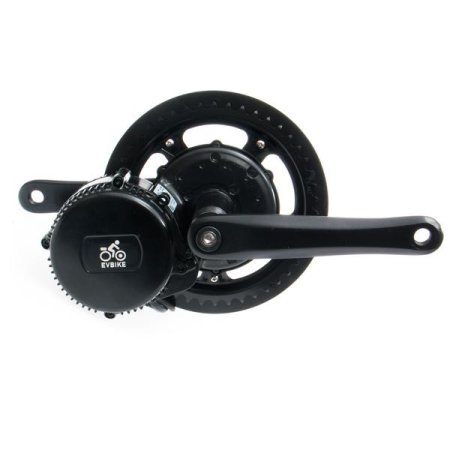

The motor is mounted in the frame instead of the pedal. It has an optimal center of gravity in the middle of bike. It is dust-proof and protected against water (IP65). The motor is designed for center axes of 68-72 mm. The advantage of central drives is that they have up to 35% longer range than hub-drives motors. They are so universal that they can be installed on 99% of series bikes. More about the motor ►

TIP: In the Downloads and Video ducts, you find all the technical information, videos for installation and manuals in PDF.

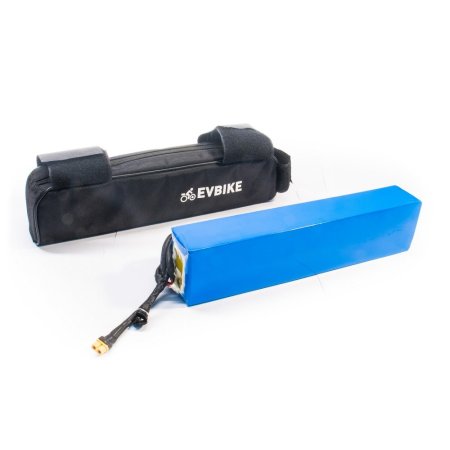

EVBIKE battery with a capacity of 13 Ah (624 Wh) is supplied with a fabric bag, which can be placed in a frame, backpack, or according to your needs and possible use. The battery includes an intelligent protective BMS module for balancing cells, their protection against undercharging and discharge. The battery has no memory effect and does not support recuperation. More about the battery►

TIP: Connect the charger to the mains first and then connect the charging connector to the battery. Otherwise, the connectors may be damaged.

TIP: Calculate how far you can ride with this battery. Try our range calculator ►

Package contents:

Motor 48 V, 750 W
Smaller bag battery 48 V, 13 Ah with LG cells
2x keys
Charger 5 A
Main cable bundle with 4 outputs
Speed sensor with a magnet
Chainring 46T with protective cover
L+R pedal crank
Assembly material (screws and nuts)
Gearsensor

TIP: If you are wondering if your bike can also be electrified, take a look at the gallery of already rebuilt bikes and get an inspiration ►

Parameters

Battery capacity

13 Ah (624 Wh)

Battery location

In the bag (variable location)

Motor power

750 W

Motor weight

4,7 kg

Torque

70 Nm, peak torque 100 Nm

Motor noise

<55 dB (silent mode)

Torque sensor

To the center axis

68-72 mm

Motor programming

Yes

Battery weight

3 kg

Battery size

370 x 90 x 75 mm

Optional display

Yes

Number of cycles

800 (capacity reduced by max. 30 %)

Cells

Nominal voltage

3.7 V

Cell composition

Lithium (Li-ion)

Range

80 - 140 km

Charging current

5 A, 2 A

USB output

Walking assistance

Yes (6 km/h)

IP65 cabling protection

Yes

Bluetooth

Memory effect

Download

Manual for mid drive_CZ (pdf, 1.1 MB)

Manual for bag battery (pdf, 565.5 kB)
